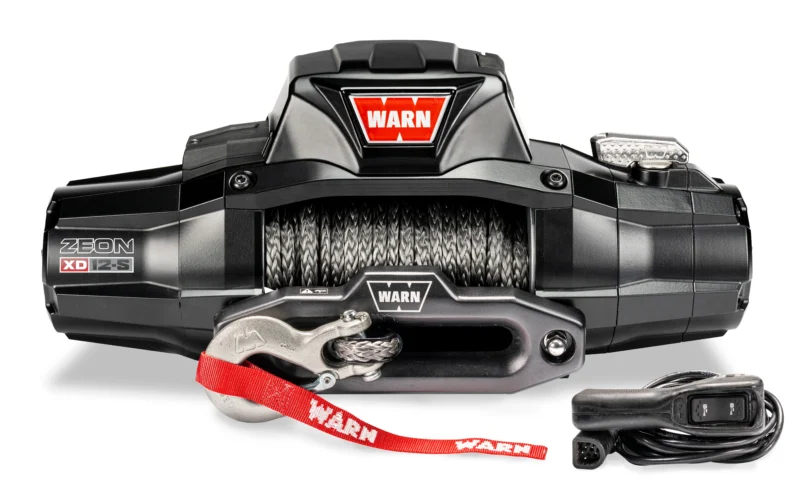

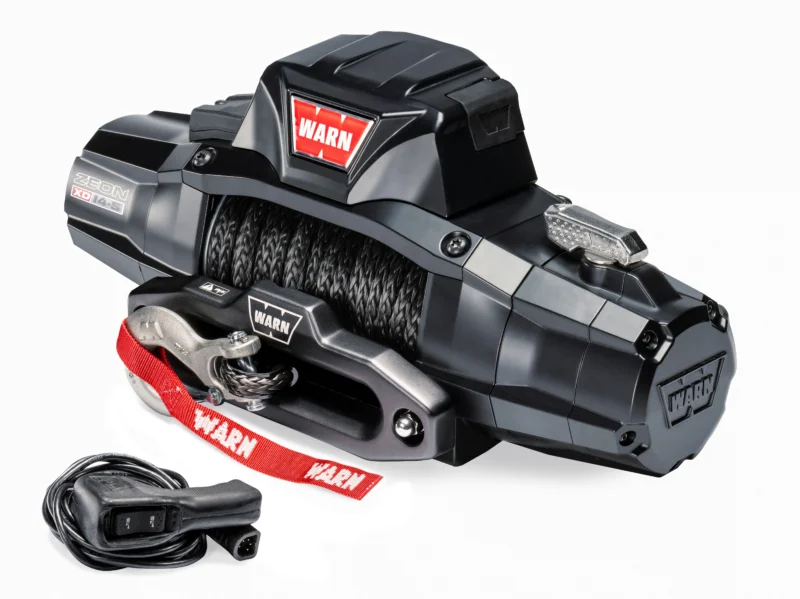

Advanced, capable, and tough, the 12,000 lb. capacity ZEON XD 12-S is perfect for full-size trucks and larger 4x4s, and built to endure over the long haul. As the evolution of the ZEON family, this is the go-to winch for off-roaders who value reliability, durability, and performance, no matter where adventure takes you. With upgraded waterproofing, increased corrosion protection, and best-in-class linespeeds, ZEON XD is ready for when you need it most. Plus, they're designed, engineered, and assembled in the USA.
WARN ZEON XD 10-S premium recovery winch. Performance and durability; industry's best warranty; fastest line-speed; and most robust waterproof sealing. ZEON XD is the ultra-reliable recovery tool you can count on.
| Brand | Warn |
|---|---|
| Type | Winch |
| Weight | 0.4 - 106 lbs |
| Brake Activation | Automatic |
| Brake Type | Cone |
| Cable Diameter | 3/8 |
| Cable Length | 80, 100, 70 |
| Cable Material | Synthetic Rope, Metal Rope, No rope included |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
| Color | Black |
| Compatible Winch Models | ZEON XC |
| D Shackle Included | No |
| Fairlead Type | Hawse, No fairlead included |
| Free Spooling | Yes |
| Gear Ratio | 176:1, 141:1, 213:1 |
| Gearing | 3-Stage Planetary |
| Hand Saver | Yes, No |
| Length | 22, 23.9, 19.5 |
| Maximum Height | 7.8, 10.5 |
| Maximum Width | 6.7, 7.1 |
| Motor Type | Series Wound |
| Motor Voltage | 12V, 24V, 12 |
| Mount Type | Fixed Mount |
| Mounting Bolt Pattern Length | 4.5 |
| Mounting Bolt Pattern Width | 10 |
| Mounting Hole Quantity | 4 |
| Power Out | Yes |
| Rated Line Pull | 12000, 10000, 14000, 8000 |
| Remote Included | Yes |
| Remote Type | Wire, Wireless |
| Requires Mount | Yes |
| Solenoid Type | Contactor |
| Tree Saver | No |
| Universal Or Specific Fit | Specific |
| Voltage | 12V |
| WARNING CA Proposition 65 | Yes |
| Winch Rating | Electric |
| With Light Mounts | 10000lbs, 12000lbs |
37 products in this series
