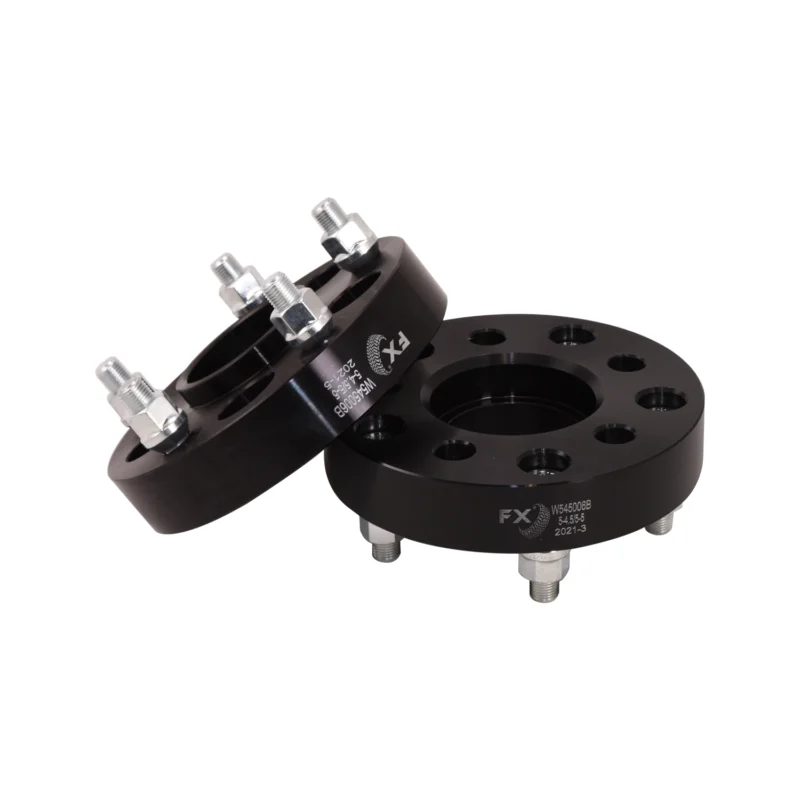

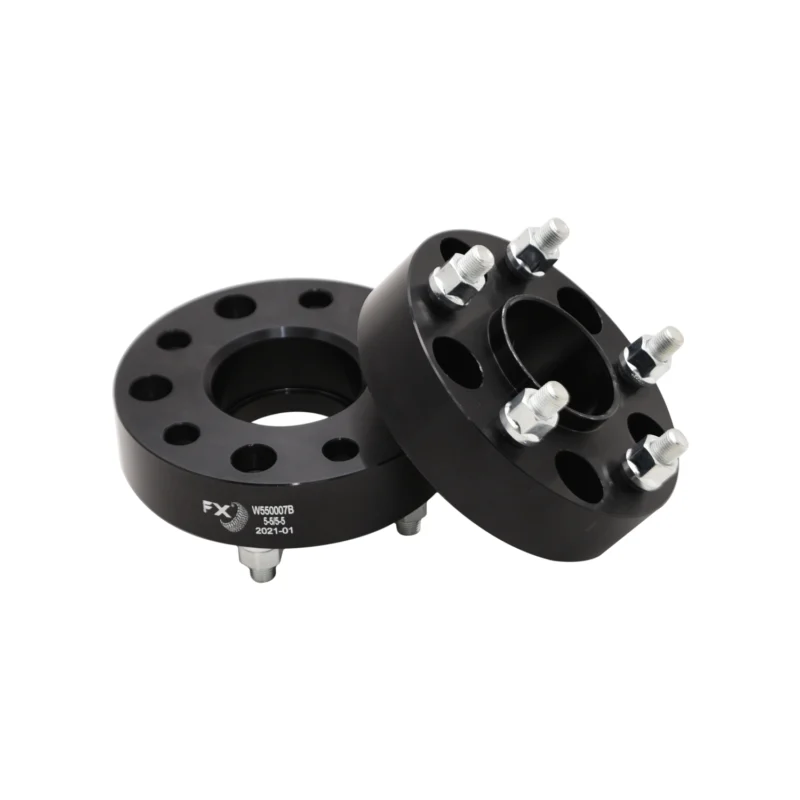

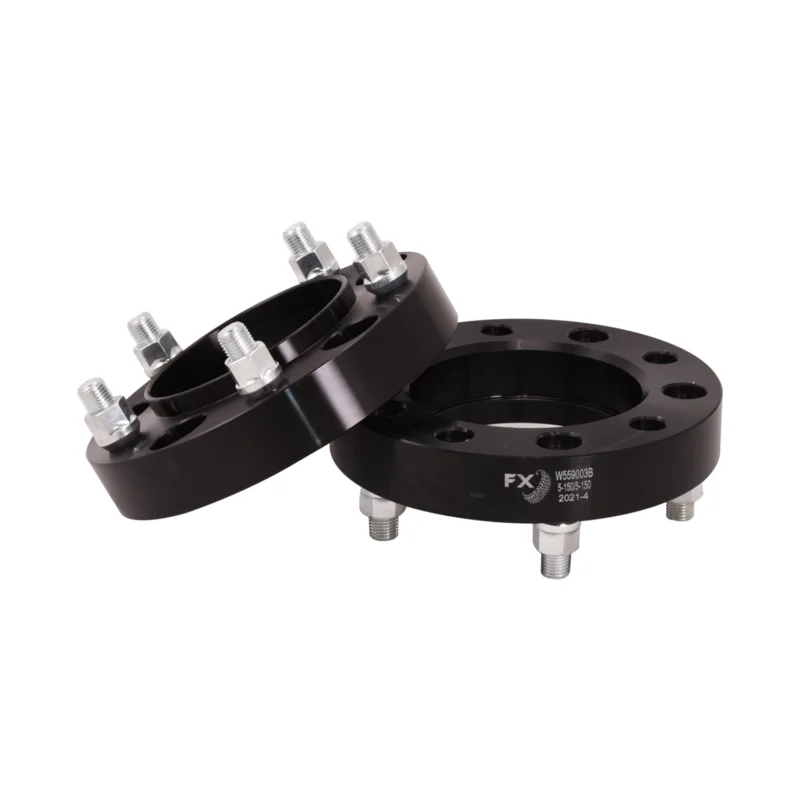

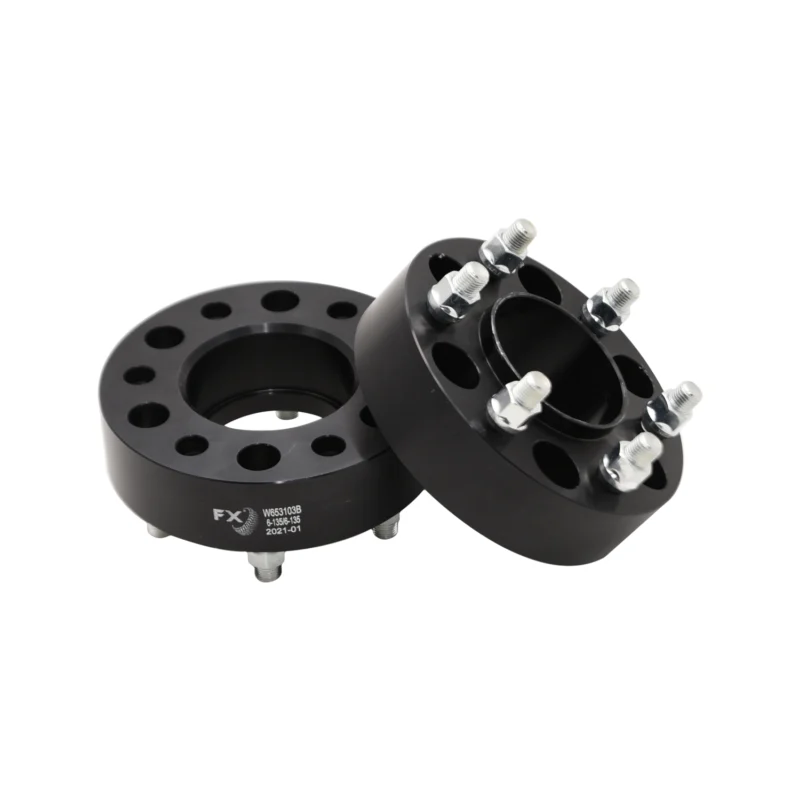

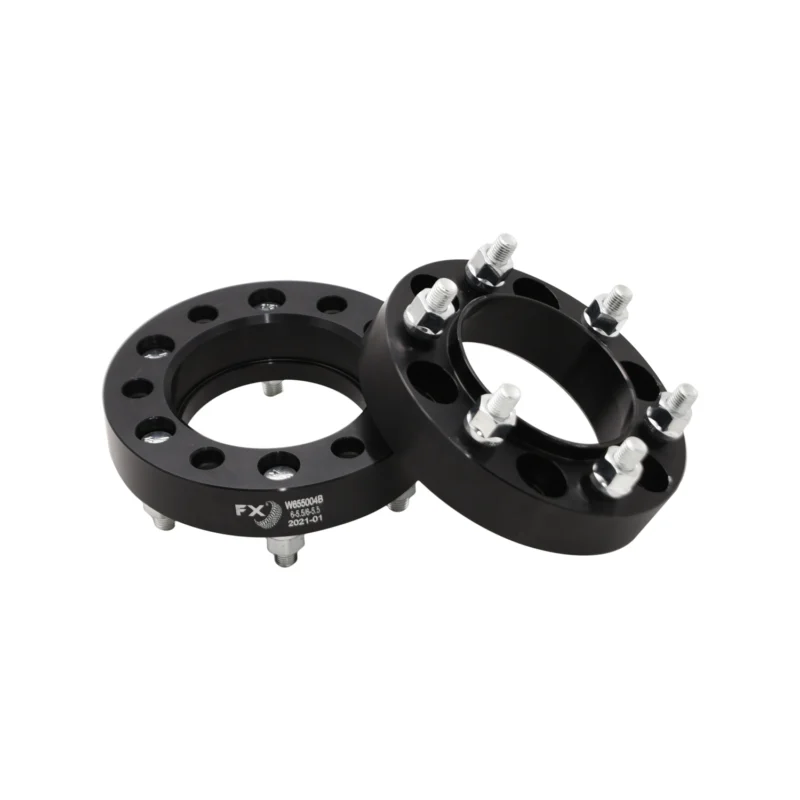

TrailFX Wheel Spacers and Adapters are precision engineered to reposition wheels further out from the hubs. This can create a more aggressive stance for the vehicle, correct brake caliper clearance, and increase tire clearance to support the installation of lift kits or larger wheel and tire packages.
10 Set's of Bolts & Nuts
| Brand | TrailFX |
|---|---|
| Type | Wheel Adapter |
| Weight | 7.7 - 13.9 lbs |
| Bolt Pattern (IN) | 6x5.50, 6 x 5.50, 6 x 5.31, 5 x 4.50, 5 x 5.90, ... |
| Bolt Pattern (MM) | 6x139.7, 6 x 139.7, 5 x 150, 5 x 127, 6 x 135, ... |
| Color | Black |
| Drilling Required | No |
| Estimated Install Time (Hours) | 1 |
| Finish | Anodized |
| Hub Centric | Yes |
| Hub Size | 71.50 Millimeter, 93.1 Millimeter, 86.61 Millimeter, 109.98 Millimeter, 78.30 Millimeter, ... |
| Includes Bolts | Yes |
| Includes Nuts | Yes |
| Includes Studs | No |
| Lug Centric | No |
| Lug Nut Color | Silver |
| Lug Nut Design | Acorn Open End |
| Lug Nut Finish | Chrome |
| Lug Nut Material | Steel |
| Lug Nut Seat Type | 60 Degree Conical |
| Material | Aluminum |
| Mounting Type | Stud |
| Number Of Lug Nuts | 10 |
| Quantity | Set of 2 |
| Stud Size | 1/2 x 20 |
| Style | Hub Centric |
| Thickness | 1-1/4 Inch, 38.1 Millimeter, 1-3/4 Inch, 31.75 Millimeter, 1.25, ... |
| Thread Size | 14 x 1.5, 1/2 x 20, 12x1.50, 12 x 1.5 |
| Universal Or Specific Fit | Specific |
| Vehicle Bolt Circle (IN) | 5 x 4.50 |
| Vehicle Bolt Circle (MM) | 5 x 114.3 |
| Wheel Bolt Circle (IN) | 5 x 5.00 |
| Wheel Bolt Circle (MM) | 5 x 127 |
| Wheel Nuts Included | Yes |
| Wheel Studs Included | No |
9 products in this series
