The Titan XXL tank also features minimal hang down below the bottom of the stock tank (approximately only 1.5" lower than stock tank shield bracket).Installation is a breeze - no fabrication or cutting required. This tank is a direct fit, bolt-in application, making it the perfect upgrade for your Ford F250 or F350 pickup. Application For model year: 2008-2010.For F250 and F350 Models with Power Stroke Engines. Note: For use with diesel fuel ONLY. Additional Details. The TITAN tank is 21 gallons larger at 51 gallons. The stock tank is only 30 gallons. Will not interfere with powered steps, air bag systems and most other accessories. Our mid-ship, direct replacement fuel tanks are designed to use your trucks' stock/OE sending unit. However, our tanks are compatible with Fleece, AirDog, FASS, etc. This tank does NOT fit cab & chassis models. It is ONLY for use on trucks with traditional pick-up truck short beds. Some 2008-2010 vehicles may need the 0299002 Ford Fuel Line Extension Kit.

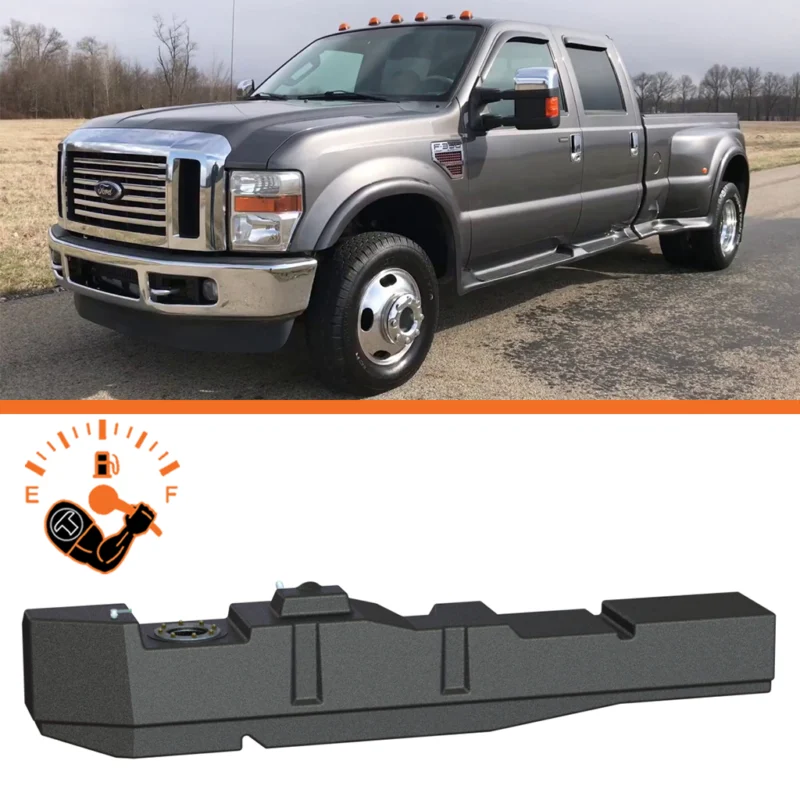

51 Gallon extra heavy duty, cross-linked polyethylene fuel tank.
| Brand | Titan Fuel Tanks |
|---|---|
| Type | Midship Replacement Fuel Tank |
| Weight | 46 - 108 lbs |
| Attached Sump | No, Black |
| Baffled Sump | Yes |
| California Restriction | No |
| Capacity | 60, 40, 54, 51, 246, ... |
| Color | Black |
| Filler Neck Attached | No |
| Fuel Pump Included | No |
| Fuel System Compatibility | Electronic Fuel Injection |
| Grade Type | Performance |
| Increased Capacity (US Gallons) | 27.5, 24, 23, 31, 17, ... |
| Material | Polyethylene (PE) |
| Material Thickness | 0.25, 6.35 |
| Merch Code | Fuel Distribution Parts/Accessories (Automotive) |
| Mounting Straps Included | Yes |
| O-Ring Included | Yes |
| Position | N/A |
| Sales in Canada | Yes |
| Sending Unit Included | No |
| Stock Tank Capacity (US Gallons) | 36, 26.5, 26, 28, 48, ... |
| TITAN Tank Capacity (US Gallons) | 54, 60, 65, 51, 67, ... |
| Truck Freight | No, Yes |
| USMCA Origin Criterion | B |
