Kit Features and Benefits:· 6” front lift with a coil spring rear lift for the perfect lifted stance.· Includes Driveline Indexing System with transfer case clocking ring and new heavy-duty transmission crossmember.· Tubular Radius Arms correct the caster angle included in kit· Maintains factory turning radius without rubbing when using the recommended wheel and tire size.· Maintains factory suspension geometry and articulation.· For use on the Ram 2500 HD Diesel engine trucks only (excludes gasoline-engine applications).· Allows for up to 37x12.50 tires on 9" wide wheels with +01 to +18 offset.· 3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference.· 3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression. Soft mode allows a partial bypass of the main piston for a softer ride· 8-Position Micro Adjust Dial offers refined damping adjustments· Reservoir design increases nitrogen to oil ratio for consistent damping over wide temperature ranges.· Hard Anodized Large Bore 6061-T6 Aluminum Shock Body for impact and corrosion resistance as well as increased oil volume for consistent performance.· VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up for reduced body roll and an overall increase in damping to reduce bottom out when pushed to the limit.· Red Line high VI shock oil for consistent performance across all temperatures from -50F to 450F with anti-wear and lubricity agents.*Kits will not fit any models with HEMI Gasoline engines, dually models, Classic models, and any automatic-leveling rear air suspension models.

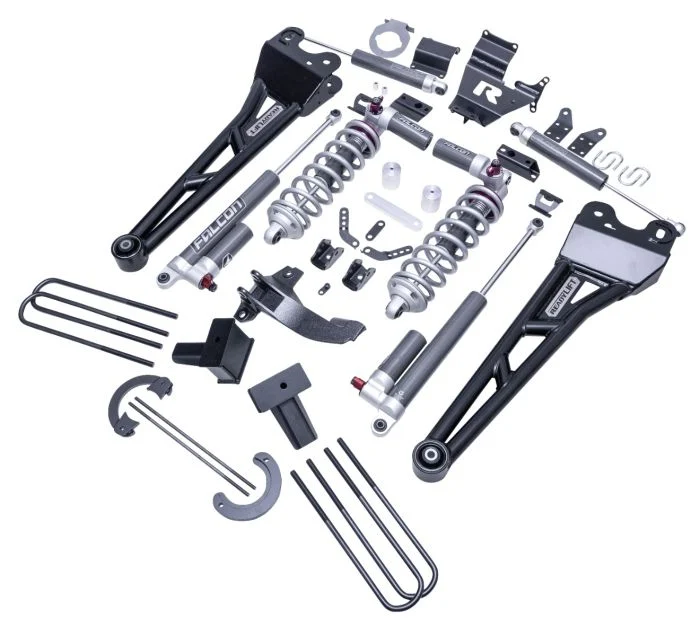

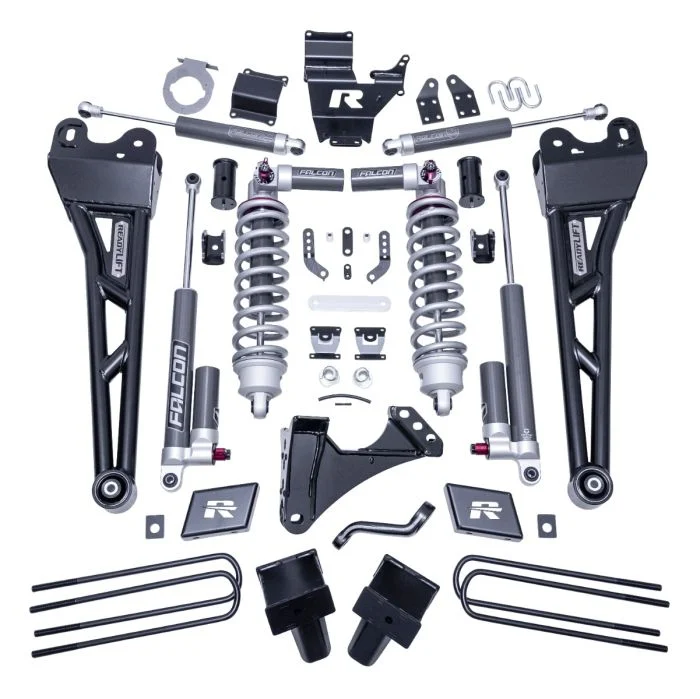

6'' MAX3.3 Suspension System 2019-2024 Ram 2500 W/ Falcon 3.3 Shocks And Radius Arms Standard Output Diesel Motor
| Brand | ReadyLift |
|---|---|
| Type | Performance Lift Kit |
| Installation Time | 5+ Hours |
| Weight | 85 - 420 lbs |
| Ball Joint Included | Yes |
| Bushings Included | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/produc |
| Color | Black, Silver, Gray |
| Control Arm Material | DOM tube steel, Billet Aluminum |
| Fitment | Direct Fitment, Universal |
| Front Lift Component | Coilover, Strurt, Coil Spring, Shocks with Spindle, Torsion Key |
| Front Lift Height | 3 Inches, 3.5 Inches, 4, 6 Inches, 4 Inches, ... |
| Front or Rear | Front and Rear |
| Front Shocks | Falcon 2.1, Falcon 3.3 Coilover, Falcon 3.3, Yes, Falcon 2.1 Monotube, ... |
| Install Difficulty | Difficult Requires Professional Installation, Intermediate Requires some Automotive knowledge, Difficult Requires Professional Installation (We recommend you have this installed by local 4WP shop), Difficult Requires Professional Installation. |
| Lift Kit Category | Big Lift |
| Material | Steel, Steel and Shocks, Tube Steel, Steele, Billet Aluminum |
| Max Tire Diameter Custom Fit | 37 |
| Max Tire Size | 35 Inch, 37 Inch, 285, 37, 35, ... |
| Maximum Lift | 3.5, 6 |
| Mounting Hardware Included | Yes |
| Nuts Included | Yes |
| Prop65 Chem1 | Di(2-ethylhexyl)phthalate (DEHP) |
| Rear Lift Component | Block and U-bolt, Coil Spring, Block, Coil Spring Spacer, Leaf Springs, ... |
| Rear Lift Height | 2 Inches, 2.5 Inches, 1.5 Inches, 1 Inch, 4, ... |
| Rear Shocks | Falcon 3.3, Falcon 2.1, Yes, Falcon Tow Haul 2.1, Falcon 2.1 Tow Haul, ... |
| Shocks Included | Yes, Shocks Included |
| Whats Included | Radius Arms |
Use the Find Your Fit tool below to check if this product fits your specific vehicle.
Select your vehicle to find the exact part number for your truck.
